DeepSeek-R1

0.模型获取

RK推理模型文件下载链接： https://pan.baidu.com/s/14BtJdoOSUiOsdeL_tqtVDg?pwd=rkll 提取码: rkll

1.模型转换(可选)

注意：模型转换需要在Linux x86主机上执行！

获取原始模型：

git lfs install
git clone https://huggingface.co/deepseek-ai/DeepSeek-R1-Distill-Qwen-1.5B

如果无法获取，可前往我们提供的网盘资料获取： https://pan.baidu.com/s/1eRRds8yKxLXuXwnM7BArHQ?pwd=7fkw 提取码: 7fkw

1.1 激活环境

激活rkllm conda环境：

conda activate rkllm

1.2 生成模型量化校准数据集

生成模型量化校准文件:

cd examples/DeepSeek-R1-Distill-Qwen-1.5B_Demo/export
python3 generate_data_quant.py -m /path/to/DeepSeek-R1-Distill-Qwen-1.5B

假设我的原始模型放在~/DeepSeek-R1-Distill-Qwen-1.5B/目录下，则执行：

python3 generate_data_quant.py -m ~/DeepSeek-R1-Distill-Qwen-1.5B/

1.3 模型导出源码修改

1.修改导出模型源码export_rkllm.py的模型路径：

modelpath = '/path/to/DeepSeek-R1-Distill-Qwen-1.5B'

假设我的原始模型放在/home/ubuntu/DeepSeek-R1-Distill-Qwen-1.5B目录下，则修改为：

modelpath = '/home/ubuntu/DeepSeek-R1-Distill-Qwen-1.5B'

2.修改模型上下文最大值 max_context，代码原始为：

ret = llm.build(do_quantization=True, optimization_level=optimization_level, quantized_dtype=quantized_dtype,
                quantized_algorithm=quantized_algorithm, target_platform=target_platform, num_npu_core=num_npu_core, extra_qparams=qparams, dataset=dataset, hybrid_rate=0, max_context=4096)

默认为4096，该值越大，占用内存越大，建议根据内存版本修改，修改的值必须是32的倍数。(2GB RAM 建议 512，4GB RAM 建议 1024，8GB RAM 建议 2048，12GB RAM 建议 4096)

3.修改NPU核心为2

num_npu_core = 2

4.运行模型脚本：

python3 export_rkllm.py

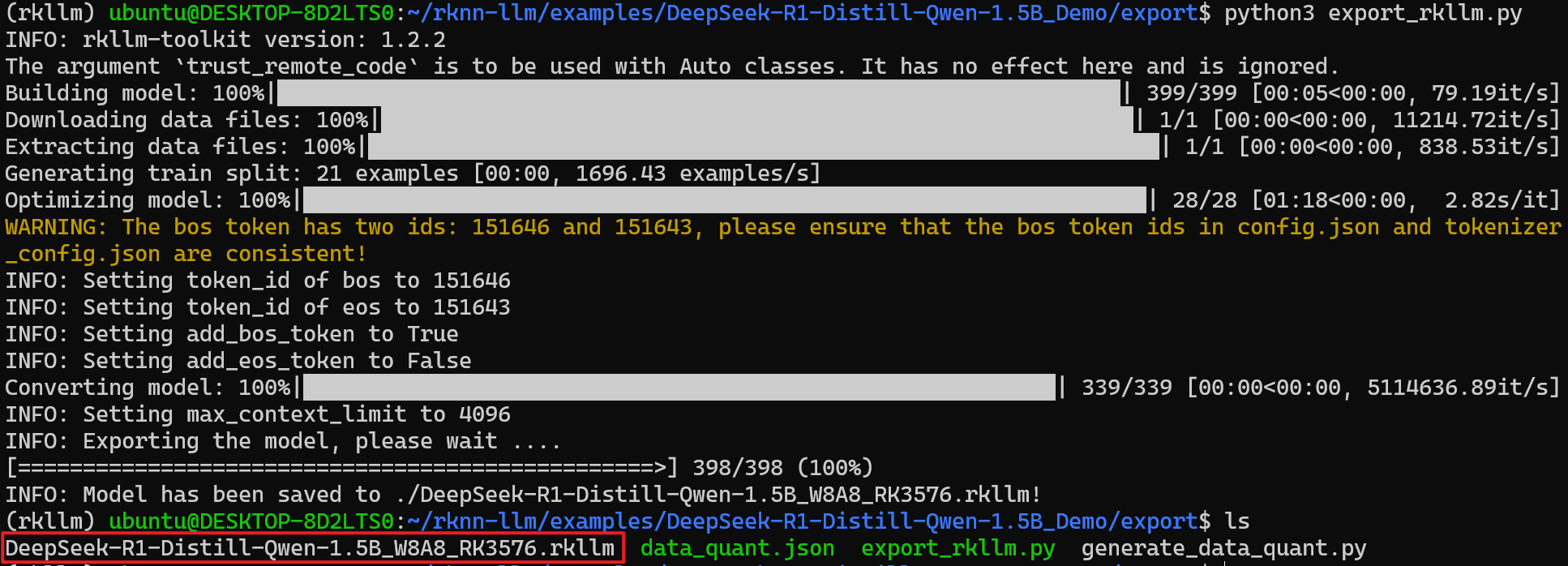

运行效果如下：

模型转换完成后可以看到DeepSeek-R1-Distill-Qwen-1.5B_W8A8_RK3576.rkllm模型文件，后续可拷贝至DshanPI A1上运行！

2.编译可执行程序

注意：模型转换需要在DshanPI A1板端上执行！

1.进入源码目录

cd rknn-llm/examples/DeepSeek-R1-Distill-Qwen-1.5B_Demo/deploy/

2.修改交叉编译工具链

vi build-linux.sh

将原本的：

GCC_COMPILER_PATH=~/opts/gcc-arm-10.2-2020.11-x86_64-aarch64-none-linux-gnu/bin/aarch64-none-linux-gnu

修改为：

GCC_COMPILER_PATH=aarch64-linux-gnu

3.安装cmake

sudo apt install cmake -y

4.增加可执行权限并执行编译

chmod +x build-linux.sh
./build-linux.sh

运行效果：

baiwen@dshanpi-a1:~/rknn-llm/examples/DeepSeek-R1-Distill-Qwen-1.5B_Demo/deploy$ ./build-linux.sh
-- The C compiler identification is GNU 11.4.0
-- The CXX compiler identification is GNU 11.4.0
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Check for working C compiler: /usr/bin/aarch64-linux-gnu-gcc - skipped
-- Detecting C compile features
-- Detecting C compile features - done
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Check for working CXX compiler: /usr/bin/aarch64-linux-gnu-g++ - skipped
-- Detecting CXX compile features
-- Detecting CXX compile features - done
-- Configuring done
-- Generating done
-- Build files have been written to: /home/baiwen/rknn-llm/examples/DeepSeek-R1-Distill-Qwen-1.5B_Demo/deploy/build/build_linux_aarch64_Release
[ 50%] Building CXX object CMakeFiles/llm_demo.dir/src/llm_demo.cpp.o
[100%] Linking CXX executable llm_demo
[100%] Built target llm_demo
Consolidate compiler generated dependencies of target llm_demo
[100%] Built target llm_demo
Install the project...
-- Install configuration: "Release"
-- Installing: /home/baiwen/rknn-llm/examples/DeepSeek-R1-Distill-Qwen-1.5B_Demo/deploy/install/demo_Linux_aarch64/./llm_demo
-- Set runtime path of "/home/baiwen/rknn-llm/examples/DeepSeek-R1-Distill-Qwen-1.5B_Demo/deploy/install/demo_Linux_aarch64/./llm_demo" to ""
-- Installing: /home/baiwen/rknn-llm/examples/DeepSeek-R1-Distill-Qwen-1.5B_Demo/deploy/install/demo_Linux_aarch64/lib/librkllmrt.so

5.进入可执行文件目录

cd install/demo_Linux_aarch64/

6.将预训练和转换完成的模型文件传输至开发板端中

模型文件下载链接： https://pan.baidu.com/s/14BtJdoOSUiOsdeL_tqtVDg?pwd=rkll 提取码: rkll

baiwen@dshanpi-a1:~/rknn-llm/examples/DeepSeek-R1-Distill-Qwen-1.5B_Demo/deploy/install/demo_Linux_aarch64$  ls
DeepSeek-R1-Distill-Qwen-1.5B_W4A16_RK3576.rkllm  DeepSeek-R1-Distill-Qwen-7B_W4A16_G128_RK3576.rkllm  lib  llm_demo

3.模型推理

3.1 DeepSeek-R1 1.5B

1.导入依赖和环境变量

export LD_LIBRARY_PATH=./lib
export RKLLM_LOG_LEVEL=1

2.执行程序

./llm_demo ./DeepSeek-R1-Distill-Qwen-1.5B_W4A16_RK3576.rkllm 2048 4096

如果想退出可输入Ctrl+C。

3.2 DeepSeek-R1 7B

1.导入依赖和环境变量

export LD_LIBRARY_PATH=./lib
export RKLLM_LOG_LEVEL=1

2.执行程序

./llm_demo ./DeepSeek-R1-Distill-Qwen-7B_W4A16_G128_RK3576.rkllm 2048 4096

如果想退出可输入Ctrl+C。
