网络视频平台部署
参考链接：
WEB VIDEO PLATFORM是一个基于GB28181-2016、部标808、部标1078标准实现的开箱即用的网络视频平台，负责实现核心信令与设备管理后台部分，支持NAT穿透，支持海康、大华、宇视等品牌的IPC、NVR接入。支持国标级联，支持将不带国标功能的摄像机/直播流/直播推流转发到其他国标平台。
ZLMediaKit 是一个基于 C++11 打造的高性能、可商用级的流媒体框架与服务器，既能作为标准 C API/多语言封装（Java/C# 等）的 SDK 嵌入业务，也能直接以自带的 MediaServer 开箱部署；它采用多线程与异步网络 IO 设计，强调稳定与极致性能，支持 RTSP/RTMP/HLS/HTTP-FLV/WebSocket-FLV/HTTP-TS/WebSocket-TS/HTTP-fMP4/WebSocket-fMP4/MP4/WebRTC/GB28181 等多协议并实现灵活互转，覆盖 H264/H265/AAC/G711/OPUS/MP3 等主流编解码和多轨道模式.
那么把一台台摄像头稳定地搬到浏览器里，其实离不开两块“基石”：WVP-GB28181-Pro 负责国标/部标的信令与设备管理，ZLMediaKit 负责音视频的收、转、发与多协议分发。前者让海康、大华、宇视等设备统一说话，后者让 RTSP/RTMP/HLS/WebRTC 等各端顺畅取流。
这篇文章按“能复现、好排障”的思路展开：从环境与依赖，到 ZLM 编译与配置、WVP 前后端构建与数据库初始化，再到 secret 对齐、端口与网段、RTP 多端口/TCP-Active、分屏播放等常见问题的定位与修复。本文作为部署参考，阅读文档你会得到一套可商用、可扩展的网络视频平台：能接、能看、能录、能回放，也能级联到上级平台，既开箱即用，又便于长期运维。
1.环境搭建
1.安装基础依赖
sudo apt update
sudo apt-get install -y openjdk-11-jre git maven nodejs npm
2.安装mysql
sudo apt install -y mysql-server
sudo systemctl enable --now mysql
sudo systemctl status mysql
3.安装redis
sudo apt install -y redis-server
sudo systemctl enable --now redis-server
sudo systemctl status redis-server
2.编译ZLMediaKit·
2.1 编译
下载源码：
# 国内用户推荐从同步镜像网站gitee下载
git clone --depth 1 https://gitee.com/xia-chu/ZLMediaKit
cd ZLMediaKit
# 千万不要忘记执行这句命令
git submodule update --init
安装编译器：
sudo apt-get install build-essential
sudo apt-get install cmake
安装依赖库：
sudo apt-get install libssl-dev -y
sudo apt-get install libsdl-dev -y
sudo apt-get install libavcodec-dev -y
sudo apt-get install libavutil-dev -y
sudo apt-get install ffmpeg -y
构建与编译项目：
mkdir build
cd build
cmake ..
make -j4
构建与编译过程
baiwen@dshanpi-a1:~/ZLMediaKit$ mkdir build
baiwen@dshanpi-a1:~/ZLMediaKit$ cd build
baiwen@dshanpi-a1:~/ZLMediaKit/build$ cmake ..
CMake Deprecation Warning at CMakeLists.txt:24 (cmake_minimum_required):
Compatibility with CMake < 3.5 will be removed from a future version of
CMake.
Update the VERSION argument <min> value or use a ...<max> suffix to tell
CMake that the project does not need compatibility with older versions.
-- The C compiler identification is GNU 13.3.0
-- The CXX compiler identification is GNU 13.3.0
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Check for working C compiler: /usr/bin/cc - skipped
-- Detecting C compile features
-- Detecting C compile features - done
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Check for working CXX compiler: /usr/bin/c++ - skipped
-- Detecting CXX compile features
...
baiwen@dshanpi-a1:~/ZLMediaKit/build$ make -j4
/usr/bin/cmake -S/home/baiwen/ZLMediaKit -B/home/baiwen/ZLMediaKit/build --check-build-system CMakeFiles/Makefile.cmake 0
/usr/bin/cmake -E cmake_progress_start /home/baiwen/ZLMediaKit/build/CMakeFiles /home/baiwen/ZLMediaKit/build//CMakeFiles/progress.marks
make -f CMakeFiles/Makefile2 all
make[1]: Entering directory '/home/baiwen/ZLMediaKit/build'
make -f 3rdpart/CMakeFiles/jsoncpp.dir/build.make 3rdpart/CMakeFiles/jsoncpp.dir/depend
make -f 3rdpart/CMakeFiles/mov.dir/build.make 3rdpart/CMakeFiles/mov.dir/depend
make -f 3rdpart/CMakeFiles/flv.dir/build.make 3rdpart/CMakeFiles/flv.dir/depend
make -f 3rdpart/CMakeFiles/mpeg.dir/build.make 3rdpart/CMakeFiles/mpeg.dir/depend
make[2]: Entering directory '/home/baiwen/ZLMediaKit/build'
...
make[2]: Leaving directory '/home/baiwen/ZLMediaKit/build'
make -f api/tests/CMakeFiles/api_tester_websocket.dir/build.make api/tests/CMakeFiles/api_tester_websocket.dir/build
make[2]: Entering directory '/home/baiwen/ZLMediaKit/build'
[ 99%] Built target api_tester_h264_pusher
[ 99%] Building C object api/tests/CMakeFiles/api_tester_websocket.dir/websocket.c.o
cd /home/baiwen/ZLMediaKit/build/api/tests && /usr/bin/cc -DENABLE_HLS -DENABLE_MP4 -DENABLE_OPENSSL -DENABLE_RTPPROXY -DENABLE_SRT -DENABLE_VERSION -DHAVE_MMSG_HDR -DHAVE_RECVMMSG_API -DHAVE_SENDMMSG_API -I/home/baiwen/ZLMediaKit/build -I/home/baiwen/ZLMediaKit/3rdpart -I/home/baiwen/ZLMediaKit/build/api -I/home/baiwen/ZLMediaKit/api/include -I/home/baiwen/ZLMediaKit/3rdpart/jsoncpp/include -I/home/baiwen/ZLMediaKit/3rdpart/media-server/libflv/include -I/home/baiwen/ZLMediaKit/3rdpart/media-server/libmov/include -I/home/baiwen/ZLMediaKit/3rdpart/media-server/libmpeg/include -I/home/baiwen/ZLMediaKit/3rdpart/ZLToolKit/src -I/home/baiwen/ZLMediaKit/src -I/home/baiwen/ZLMediaKit/ext-codec/.. -I/home/baiwen/ZLMediaKit/srt -I/home/baiwen/ZLMediaKit/srt/.. -g -fPIC -Wall -Wextra -Wno-unused-function -Wno-unused-parameter -Wno-unused-variable -Wno-deprecated-declarations -Wno-error=extra -Wno-error=missing-field-initializers -Wno-error=type-limits -Wno-comment -g3 -MD -MT api/tests/CMakeFiles/api_tester_websocket.dir/websocket.c.o -MF CMakeFiles/api_tester_websocket.dir/websocket.c.o.d -o CMakeFiles/api_tester_websocket.dir/websocket.c.o -c /home/baiwen/ZLMediaKit/api/tests/websocket.c
[ 99%] Linking CXX executable /home/baiwen/ZLMediaKit/release/linux/Debug/api_tester_server
[100%] Linking CXX executable /home/baiwen/ZLMediaKit/release/linux/Debug/api_tester_websocket
cd /home/baiwen/ZLMediaKit/build/api/tests && /usr/bin/cmake -E cmake_link_script CMakeFiles/api_tester_server.dir/link.txt --verbose=1
cd /home/baiwen/ZLMediaKit/build/api/tests && /usr/bin/cmake -E cmake_link_script CMakeFiles/api_tester_websocket.dir/link.txt --verbose=1
/usr/bin/c++ -g -rdynamic CMakeFiles/api_tester_websocket.dir/websocket.c.o -o /home/baiwen/ZLMediaKit/release/linux/Debug/api_tester_websocket -Wl,-rpath,/home/baiwen/ZLMediaKit/release/linux/Debug /home/baiwen/ZLMediaKit/release/linux/Debug/libmk_api.so -Wl,--start-group /home/baiwen/ZLMediaKit/release/linux/Debug/libext-codec.a /home/baiwen/ZLMediaKit/release/linux/Debug/libsrt.a /home/baiwen/ZLMediaKit/release/linux/Debug/libzlmediakit.a -lssl -lcrypto -lpthread /home/baiwen/ZLMediaKit/release/linux/Debug/libjsoncpp.a /home/baiwen/ZLMediaKit/release/linux/Debug/libflv.a /home/baiwen/ZLMediaKit/release/linux/Debug/libmov.a /home/baiwen/ZLMediaKit/release/linux/Debug/libmpeg.a /home/baiwen/ZLMediaKit/release/linux/Debug/libzltoolkit.a -Wl,--end-group
/usr/bin/c++ -g -rdynamic CMakeFiles/api_tester_server.dir/server.c.o -o /home/baiwen/ZLMediaKit/release/linux/Debug/api_tester_server -Wl,-rpath,/home/baiwen/ZLMediaKit/release/linux/Debug /home/baiwen/ZLMediaKit/release/linux/Debug/libmk_api.so -Wl,--start-group /home/baiwen/ZLMediaKit/release/linux/Debug/libext-codec.a /home/baiwen/ZLMediaKit/release/linux/Debug/libsrt.a /home/baiwen/ZLMediaKit/release/linux/Debug/libzlmediakit.a -lssl -lcrypto -lpthread /home/baiwen/ZLMediaKit/release/linux/Debug/libjsoncpp.a /home/baiwen/ZLMediaKit/release/linux/Debug/libflv.a /home/baiwen/ZLMediaKit/release/linux/Debug/libmov.a /home/baiwen/ZLMediaKit/release/linux/Debug/libmpeg.a /home/baiwen/ZLMediaKit/release/linux/Debug/libzltoolkit.a -Wl,--end-group
make[2]: Leaving directory '/home/baiwen/ZLMediaKit/build'
make[2]: Leaving directory '/home/baiwen/ZLMediaKit/build'
[100%] Built target api_tester_server
[100%] Built target api_tester_websocket
make[1]: Leaving directory '/home/baiwen/ZLMediaKit/build'
/usr/bin/cmake -E cmake_progress_start /home/baiwen/ZLMediaKit/build/CMakeFiles 0
进入二进制目标文件目录：
cd ../ && cd release/linux/Debug
可以看到如下目录：
baiwen@dshanpi-a1:~/ZLMediaKit/build$ cd ../ && cd release/linux/Debug
baiwen@dshanpi-a1:~/ZLMediaKit/release/linux/Debug$ ls
api_tester_h264_media_server api_tester_websocket libflv.a libsrt.a test_bench_forward test_httpApi test_pusherMp4 test_wsServer
api_tester_h264_pusher bom libjsoncpp.a libzlmediakit.a test_bench_proxy test_httpClient test_rtp www
api_tester_httpclient config.ini libmk_api.so libzltoolkit.a test_bench_pull test_http_head test_server
api_tester_pusher default.pem libmov.a MediaServer test_bench_push test_ps test_sortor
api_tester_server libext-codec.a libmpeg.a tab test_flv test_pusher test_wsClient
打开config.ini配置文件：
[api]
apiDebug=1
defaultSnap=./www/logo.png
downloadRoot=./www
secret=T7vwC5TF0GFge71RO1HRSHDNIjqkCs3N
snapRoot=./www/snap/
[http]
allow_cross_domains=1
allow_ip_range=::1,127.0.0.1,172.16.0.0-172.31.255.255,192.168.0.0-192.168.255.255,10.0.0.0-10.255.255.255
charSet=utf-8
dirMenu=1
forbidCacheSuffix=
forwarded_ip_header=
keepAliveSecond=30
maxReqSize=40960
notFound=<html><head><title>404 Not Found</title></head><body bgcolor="white"><center><h1>您访问的资源不存在！</h1></center><hr><center>ZLMediaKit(git hash:046bdec/2025-10-11T18:52:41+08:00,branch:master,build time:2025-10-15T16:09:35)</center></body></html>
port=80
rootPath=./www
sendBufSize=65536
sslport=443
virtualPath=
[general]
broadcast_player_count_changed=0
check_nvidia_dev=1
enableVhost=0
enable_ffmpeg_log=0
flowThreshold=1024
listen_ip=::
maxStreamWaitMS=15000
mediaServerId=your_server_id
mergeWriteMS=0
resetWhenRePlay=1
streamNoneReaderDelayMS=20000
unready_frame_cache=100
wait_add_track_ms=3000
wait_audio_track_data_ms=1000
wait_track_ready_ms=10000
请记住配置文件中的secret和port。将其中的secret修改为
secret=TWSYFgYJOQWB4ftgeYut8DW4wbs7pQnj
将其中的mediaServerId修改为：
mediaServerId=zlmediakit-local
将其中的listen_ip修改为：
listen_ip=0.0.0.0
2.2 运行
1.进入root环境
su

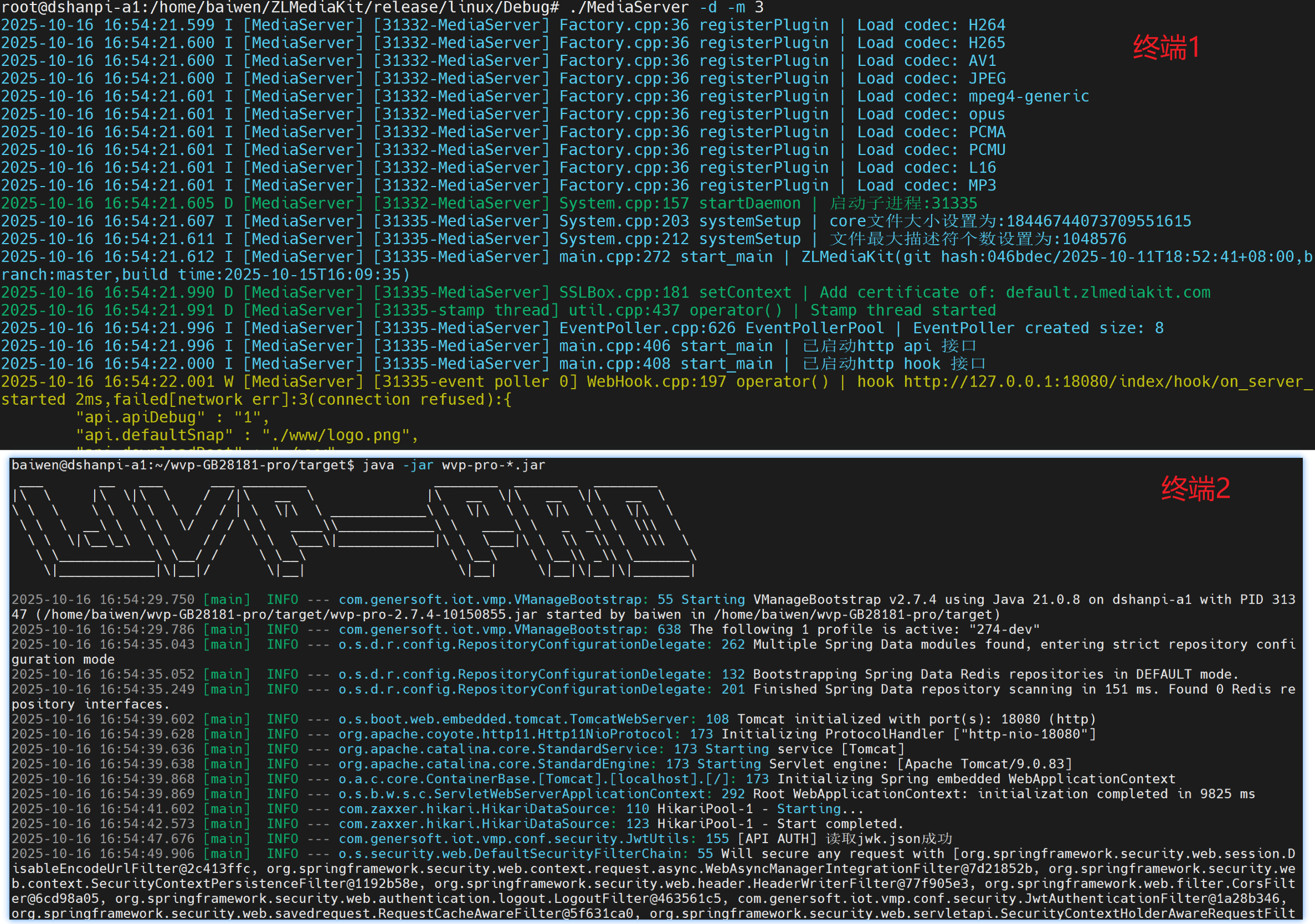

2.启动MediaServer进程
#通过-h可以了解启动参数
./MediaServer -h
#以守护进程模式启动
./MediaServer -d
3.编译WVP-PRO
获取WVP-PRO源码
git clone https://github.com/648540858/wvp-GB28181-pro.git
3.1 编译前端页面
进入项目里的前端子目录，使用 npm 安装当前目录的依赖，进行生产环境打包。
cd wvp-GB28181-pro/web/
npm --registry=https://registry.npmmirror.com install
npm run build:prod
npm install 运行效果
baiwen@dshanpi-a1:~/wvp-GB28181-pro/web$ npm --registry=https://registry.npmmirror.com install
npm WARN EBADENGINE Unsupported engine {
npm WARN EBADENGINE package: '@achrinza/node-ipc@9.2.2',
npm WARN EBADENGINE required: { node: '8 || 10 || 12 || 14 || 16 || 17' },
npm WARN EBADENGINE current: { node: 'v18.19.1', npm: '9.2.0' }
npm WARN EBADENGINE }
npm WARN deprecated stable@0.1.8: Modern JS already guarantees Array#sort() is a stable sort, so this library is deprecated. See the compatibility table on MDN: https://developer.mozilla.org/en-US/docs/Web/JavaScript/Reference/Global_Objects/Array/sort#browser_compatibility
npm WARN deprecated source-map-url@0.4.1: See https://github.com/lydell/source-map-url#deprecated
npm WARN deprecated urix@0.1.0: Please see https://github.com/lydell/urix#deprecated
npm WARN deprecated har-validator@5.1.5: this library is no longer supported
npm WARN deprecated request-promise-native@1.0.9: request-promise-native has been deprecated because it extends the now deprecated request package, see https://github.com/request/request/issues/3142
npm WARN deprecated resolve-url@0.2.1: https://github.com/lydell/resolve-url#deprecated
npm WARN deprecated @types/minimatch@6.0.0: This is a stub types definition. minimatch provides its own type definitions, so you do not need this installed.
npm WARN deprecated abab@2.0.6: Use your platform's native atob() and btoa() methods instead
npm WARN deprecated move-concurrently@1.0.1: This package is no longer supported.
npm WARN deprecated domexception@1.0.1: Use your platform's native DOMException instead
npm WARN deprecated @hapi/topo@3.1.6: This version has been deprecated and is no longer supported or maintained
npm WARN deprecated @hapi/bourne@1.3.2: This version has been deprecated and is no longer supported or maintained
npm WARN deprecated inflight@1.0.6: This module is not supported, and leaks memory. Do not use it. Check out lru-cache if you want a good and tested way to coalesce async requests by a key value, which is much more comprehensive and powerful.
npm WARN deprecated copy-concurrently@1.0.5: This package is no longer supported.
npm WARN deprecated rimraf@2.7.1: Rimraf versions prior to v4 are no longer supported
npm WARN deprecated figgy-pudding@3.5.2: This module is no longer supported.
npm WARN deprecated q@1.5.1: You or someone you depend on is using Q, the JavaScript Promise library that gave JavaScript developers strong feelings about promises. They can almost certainly migrate to the native JavaScript promise now. Thank you literally everyone for joining me in this bet against the odds. Be excellent to each other.
npm WARN deprecated
npm WARN deprecated (For a CapTP with native promises, see @endo/eventual-send and @endo/captp)
npm WARN deprecated @babel/plugin-proposal-class-properties@7.18.6: This proposal has been merged to the ECMAScript standard and thus this plugin is no longer maintained. Please use @babel/plugin-transform-class-properties instead.
npm WARN deprecated eslint-loader@2.2.1: This loader has been deprecated. Please use eslint-webpack-plugin
npm WARN deprecated source-map-resolve@0.5.3: See https://github.com/lydell/source-map-resolve#deprecated
npm WARN deprecated rimraf@2.6.3: Rimraf versions prior to v4 are no longer supported
npm WARN deprecated consolidate@0.15.1: Please upgrade to consolidate v1.0.0+ as it has been modernized with several long-awaited fixes implemented. Maintenance is supported by Forward Email at https://forwardemail.net ; follow/watch https://github.com/ladjs/consolidate for updates and release changelog
npm WARN deprecated left-pad@1.3.0: use String.prototype.padStart()
npm WARN deprecated glob@7.2.3: Glob versions prior to v9 are no longer supported
npm WARN deprecated w3c-hr-time@1.0.2: Use your platform's native performance.now() and performance.timeOrigin.
npm WARN deprecated fs-write-stream-atomic@1.0.10: This package is no longer supported.
npm WARN deprecated html-webpack-plugin@3.2.0: 3.x is no longer supported
npm WARN deprecated sane@4.1.0: some dependency vulnerabilities fixed, support for node < 10 dropped, and newer ECMAScript syntax/features added
npm WARN deprecated babel-eslint@10.1.0: babel-eslint is now @babel/eslint-parser. This package will no longer receive updates.
npm WARN deprecated uuid@3.4.0: Please upgrade to version 7 or higher. Older versions may use Math.random() in certain circumstances, which is known to be problematic. See https://v8.dev/blog/math-random for details.
npm WARN deprecated @hapi/address@2.1.4: Moved to 'npm install @sideway/address'
npm WARN deprecated webpack-chain@6.5.1: Package no longer supported. Contact Support at https://www.npmjs.com/support for more info.
npm WARN deprecated @hapi/hoek@8.5.1: This version has been deprecated and is no longer supported or maintained
npm WARN deprecated request@2.88.2: request has been deprecated, see https://github.com/request/request/issues/3142
npm WARN deprecated @hapi/joi@15.1.1: Switch to 'npm install joi'
npm WARN deprecated svgo@1.2.2: This SVGO version is no longer supported. Upgrade to v2.x.x.
npm WARN deprecated vue@2.6.10: Vue 2 has reached EOL and is no longer actively maintained. See https://v2.vuejs.org/eol/ for more details.
npm WARN deprecated vue@2.6.11: Vue 2 has reached EOL and is no longer actively maintained. See https://v2.vuejs.org/eol/ for more details.
npm WARN deprecated eslint@6.7.2: This version is no longer supported. Please see https://eslint.org/version-support for other options.
npm WARN deprecated core-js@2.6.12: core-js@<3.23.3 is no longer maintained and not recommended for usage due to the number of issues. Because of the V8 engine whims, feature detection in old core-js versions could cause a slowdown up to 100x even if nothing is polyfilled. Some versions have web compatibility issues. Please, upgrade your dependencies to the actual version of core-js.
npm WARN deprecated core-js@3.6.5: core-js@<3.23.3 is no longer maintained and not recommended for usage due to the number of issues. Because of the V8 engine whims, feature detection in old core-js versions could cause a slowdown up to 100x even if nothing is polyfilled. Some versions have web compatibility issues. Please, upgrade your dependencies to the actual version of core-js.
added 1935 packages in 3m
171 packages are looking for funding
run `npm fund` for details
npm build 运行效果
baiwen@dshanpi-a1:~/wvp-GB28181-pro/web$ npm run build:prod
> vue-admin-template@4.4.0 build:prod
> vue-cli-service build
⠴ Building for production...
WARNING Compiled with 2 warnings 下午4:51:39
warning
asset size limit: The following asset(s) exceed the recommended size limit (244 KiB).
This can impact web performance.
Assets:
static/js/chunk-0ff5d20c.2415b3c2.js (303 KiB)
static/js/chunk-485a5cd6.19413fe1.js (251 KiB)
static/js/chunk-5f8d388e.0cf4e838.js (437 KiB)
static/js/chunk-b642199a.549afc6a.js (338 KiB)
static/js/chunk-elementUI.bf44d8ef.js (754 KiB)
static/js/chunk-libs.b9fae914.js (995 KiB)
static/js/h265web/missile.js (325 KiB)
static/js/ZLMRTCClient.js (266 KiB)
static/js/h265web/h265webjs-v20221106.js (1.25 MiB)
static/js/jessibuca/decoder.wasm (1 MiB)
libDecoder.wasm (2.28 MiB)
static/js/h265web/missile-v20221120.wasm (2.01 MiB)
static/images/bg19.png (3.01 MiB)
warning
entrypoint size limit: The following entrypoint(s) combined asset size exceeds the recommended limit (244 KiB). This can impact web performance.
Entrypoints:
app (2.11 MiB)
static/css/chunk-elementUI.c1c3b808.css
static/js/chunk-elementUI.bf44d8ef.js
static/css/chunk-libs.da744d2b.css
static/js/chunk-libs.b9fae914.js
static/css/app.b826f8b9.css
static/js/app.7a07b4f5.js
File Size Gzipped
../src/main/resources/static/static/js 1279.63 KiB 317.84 KiB
/h265web/h265webjs-v20221106.js
../src/main/resources/static/static/js 994.82 KiB 318.98 KiB
/chunk-libs.b9fae914.js
../src/main/resources/static/static/js 754.13 KiB 193.54 KiB
/chunk-elementUI.bf44d8ef.js
../src/main/resources/static/static/js 437.28 KiB 147.97 KiB
/chunk-5f8d388e.0cf4e838.js
../src/main/resources/static/static/js 337.73 KiB 112.93 KiB
/chunk-b642199a.549afc6a.js
../src/main/resources/static/static/js 324.78 KiB 56.38 KiB
/h265web/missile.js
../src/main/resources/static/static/js 303.08 KiB 77.90 KiB
/chunk-0ff5d20c.2415b3c2.js
../src/main/resources/static/static/js 265.94 KiB 57.22 KiB
/ZLMRTCClient.js
../src/main/resources/static/static/js 251.15 KiB 44.80 KiB
/chunk-485a5cd6.19413fe1.js
../src/main/resources/static/static/js 212.55 KiB 73.37 KiB
/jessibuca/jessibuca.js
../src/main/resources/static/static/js 166.81 KiB 54.96 KiB
/chunk-2d0e4fee.2e0e4b40.js
../src/main/resources/static/static/js 144.56 KiB 32.33 KiB
/app.7a07b4f5.js
../src/main/resources/static/static/js 107.19 KiB 36.14 KiB
/jessibuca/decoder.js
../src/main/resources/static/static/js 89.92 KiB 18.51 KiB
/chunk-5c52f93f.c6feaff2.js
../src/main/resources/static/static/js 78.31 KiB 15.87 KiB
/chunk-03885090.4334fa75.js
../src/main/resources/static/static/js 70.80 KiB 14.52 KiB
/chunk-6bf15dac.e812eec8.js
../src/main/resources/static/static/js 64.81 KiB 13.69 KiB
/chunk-4cadd9ba.e0ae2221.js
../src/main/resources/static/static/js 58.25 KiB 12.61 KiB
/chunk-d20e86a2.01b655ee.js
../src/main/resources/static/static/js 43.27 KiB 14.24 KiB
/chunk-02f6c073.59cc5720.js
../src/main/resources/static/static/js 36.74 KiB 9.78 KiB
/chunk-1efaead5.a560f92b.js
../src/main/resources/static/static/js 34.76 KiB 7.26 KiB
/chunk-625ddceb.a56df8a3.js
../src/main/resources/static/static/js 34.18 KiB 9.02 KiB
/chunk-46f68df1.b1f89100.js
../src/main/resources/static/static/js 31.40 KiB 7.56 KiB
/chunk-0ff966be.c749fbe6.js
../src/main/resources/static/static/js 29.81 KiB 6.50 KiB
/chunk-675011ec.e9b277bc.js
../src/main/resources/static/static/js 29.36 KiB 6.77 KiB
/chunk-ae23c5e4.01e6e74d.js
../src/main/resources/static/static/js 26.31 KiB 7.29 KiB
/chunk-592de512.18537e2e.js
../src/main/resources/static/static/js 20.93 KiB 5.17 KiB
/chunk-4a77eaae.80b7bad3.js
../src/main/resources/static/static/js 18.70 KiB 4.34 KiB
/chunk-cc032ec0.67b88f3e.js
../src/main/resources/static/static/js 17.79 KiB 6.02 KiB
/chunk-6501207a.6c8e23f4.js
../src/main/resources/static/static/js 17.21 KiB 6.48 KiB
/chunk-3985bb13.e9df148b.js
../src/main/resources/static/static/js 16.31 KiB 5.73 KiB
/chunk-56d2b424.d7a00b49.js
../src/main/resources/static/static/js 16.01 KiB 4.83 KiB
/chunk-4ccf6855.2d67e376.js
../src/main/resources/static/static/js 15.58 KiB 5.68 KiB
/chunk-b2c967f8.e2b67590.js
../src/main/resources/static/static/js 13.84 KiB 3.41 KiB
/chunk-2d0bd647.b56425cc.js
../src/main/resources/static/static/js 13.84 KiB 3.50 KiB
/chunk-2d21023e.e397f678.js
../src/main/resources/static/static/js 12.89 KiB 3.88 KiB
/chunk-aa54436a.8e2f4ff0.js
../src/main/resources/static/static/js 12.44 KiB 4.67 KiB
/chunk-656f8763.9cb14be6.js
../src/main/resources/static/static/js 12.20 KiB 3.63 KiB
/chunk-77885324.7829397d.js
../src/main/resources/static/static/js 12.16 KiB 3.69 KiB
/chunk-4c6f5ab0.7eb6c126.js
../src/main/resources/static/static/js 10.57 KiB 3.62 KiB
/chunk-85aefeec.b0ab14d3.js
../src/main/resources/static/static/js 8.95 KiB 3.23 KiB
/chunk-0180ce12.9e953841.js
../src/main/resources/static/static/js 5.66 KiB 1.97 KiB
/chunk-506d2652.bed3823e.js
../src/main/resources/static/static/js 3.11 KiB 1.34 KiB
/chunk-3fb678f6.b82d3ab3.js
../src/main/resources/static/static/js 2.14 KiB 1.16 KiB
/chunk-3b4a2238.7417b5e9.js
../src/main/resources/static/static/js 1.74 KiB 0.73 KiB
/chunk-159c7f2c.3257fdc8.js
../src/main/resources/static/static/js 1.13 KiB 0.63 KiB
/chunk-2d0d03f9.62c62c5e.js
../src/main/resources/static/static/js 0.89 KiB 0.47 KiB
/h265web/index.js
../src/main/resources/static/static/js 0.54 KiB 0.42 KiB
/config.js
../src/main/resources/static/static/cs 235.75 KiB 35.86 KiB
s/chunk-elementUI.c1c3b808.css
../src/main/resources/static/static/cs 30.32 KiB 6.93 KiB
s/app.b826f8b9.css
../src/main/resources/static/static/cs 5.77 KiB 1.45 KiB
s/chunk-485a5cd6.3305b2aa.css
../src/main/resources/static/static/cs 4.82 KiB 1.61 KiB
s/chunk-libs.da744d2b.css
../src/main/resources/static/static/cs 4.64 KiB 0.83 KiB
s/chunk-159c7f2c.3c7f5ad9.css
../src/main/resources/static/static/cs 4.60 KiB 1.25 KiB
s/chunk-1efaead5.103d9cd6.css
../src/main/resources/static/static/cs 3.71 KiB 0.91 KiB
s/chunk-d20e86a2.62bffeac.css
../src/main/resources/static/static/cs 3.58 KiB 0.87 KiB
s/chunk-03885090.9aacf70d.css
../src/main/resources/static/static/cs 3.51 KiB 0.84 KiB
s/chunk-4cadd9ba.a0fe5a75.css
../src/main/resources/static/static/cs 3.51 KiB 0.84 KiB
s/chunk-5c52f93f.689c904c.css
../src/main/resources/static/static/cs 3.51 KiB 0.84 KiB
s/chunk-6bf15dac.689c904c.css
../src/main/resources/static/static/cs 2.92 KiB 0.81 KiB
s/chunk-592de512.1be8c2c8.css
../src/main/resources/static/static/cs 2.24 KiB 0.71 KiB
s/chunk-02f6c073.5e1d60fa.css
../src/main/resources/static/static/cs 2.09 KiB 0.64 KiB
s/chunk-656f8763.a28516d9.css
../src/main/resources/static/static/cs 1.81 KiB 0.67 KiB
s/chunk-3fb678f6.8f0da4fd.css
../src/main/resources/static/static/cs 1.74 KiB 0.58 KiB
s/chunk-0ff966be.1d05b526.css
../src/main/resources/static/static/cs 1.36 KiB 0.53 KiB
s/chunk-4ccf6855.309d68d9.css
../src/main/resources/static/static/cs 1.26 KiB 0.47 KiB
s/chunk-4c6f5ab0.0412f404.css
../src/main/resources/static/static/cs 1.26 KiB 0.47 KiB
s/chunk-77885324.0412f404.css
../src/main/resources/static/static/cs 1.26 KiB 0.47 KiB
s/chunk-aa54436a.0412f404.css
../src/main/resources/static/static/cs 0.67 KiB 0.30 KiB
s/chunk-cc032ec0.91d9bce8.css
../src/main/resources/static/static/cs 0.58 KiB 0.35 KiB
s/chunk-ae23c5e4.506ed07b.css
../src/main/resources/static/static/cs 0.43 KiB 0.27 KiB
s/chunk-506d2652.17e52fdc.css
../src/main/resources/static/static/cs 0.32 KiB 0.22 KiB
s/chunk-4a77eaae.dc4d8eca.css
../src/main/resources/static/static/cs 0.15 KiB 0.14 KiB
s/chunk-0180ce12.a77bad16.css
../src/main/resources/static/static/cs 0.15 KiB 0.14 KiB
s/chunk-b2c967f8.a77bad16.css
../src/main/resources/static/static/cs 0.11 KiB 0.10 KiB
s/chunk-625ddceb.b9c794e2.css
../src/main/resources/static/static/cs 0.11 KiB 0.11 KiB
s/chunk-3b4a2238.7d86a804.css
../src/main/resources/static/static/cs 0.04 KiB 0.06 KiB
s/chunk-85aefeec.34968814.css
Images and other types of assets omitted.
DONE Build complete. The ../src/main/resources/static directory is ready to be deployed.
INFO Check out deployment instructions at https://cli.vuejs.org/guide/deployment.html
编译如果报错, 一般都是网络问题, 导致的依赖包下载失败。
3.2 生成可执行jar
进入项目源码目录，解析并下载依赖 到本地仓库
#回到源码根目录
cd ~/wvp-GB28181-pro
#下载依赖包
mvn package
编译效果
baiwen@dshanpi-a1:~/wvp-GB28181-pro$ mvn package
Downloaded from nexus-aliyun: https://maven.aliyun.com/repository/public/org/apache/commons/commons-lang3/3.7/commons-lang3-3.7.jar (500 kB at 430 kB/s)
Downloaded from nexus-aliyun: https://maven.aliyun.com/repository/public/com/google/guava/guava/28.2-android/guava-28.2-android.jar (2.6 MB at 2.1 MB/s)
[INFO] Replacing main artifact with repackaged archive
[INFO]
[INFO] --- maven-resources-plugin:3.2.0:copy-resources (copy-resources) @ wvp-pro ---
[INFO] Using 'UTF-8' encoding to copy filtered resources.
[INFO] Using 'UTF-8' encoding to copy filtered properties files.
[INFO] Copying 4 resources
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 02:02 min
[INFO] Finished at: 2025-10-15T16:57:52+08:00
[INFO] ------------------------------------------------------------------------
3.3 生成war
进入项目根目录，用 Maven 执行打包。
cd wvp-GB28181-pro
mvn package -P war
编译效果
baiwen@dshanpi-a1:~/wvp-GB28181-pro$ mvn package -P war
[INFO] Scanning for projects...
[WARNING]
[WARNING] Some problems were encountered while building the effective model for com.genersoft:wvp-pro:war:2.7.4
....
[INFO] Packaging webapp
[INFO] Assembling webapp [wvp-pro] in [/home/baiwen/wvp-GB28181-pro/target/wvp-pro-2.7.4-10150859]
[INFO] Processing war project
[INFO] Building war: /home/baiwen/wvp-GB28181-pro/target/wvp-pro-2.7.4-10150859.war
[INFO]
[INFO] --- spring-boot-maven-plugin:2.7.2:repackage (repackage) @ wvp-pro ---
[INFO] Replacing main artifact with repackaged archive
[INFO]
[INFO] --- maven-resources-plugin:3.2.0:copy-resources (copy-resources) @ wvp-pro ---
[INFO] Using 'UTF-8' encoding to copy filtered resources.
[INFO] Using 'UTF-8' encoding to copy filtered properties files.
[INFO] Copying 4 resources
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 01:18 min
[INFO] Finished at: 2025-10-15T17:00:40+08:00
[INFO] ------------------------------------------------------------------------
4.配置WVP-PRO
4.1 初始化SQL
1.创建SQL库和用户
用系统管理员权限执行，启动 MySQL/MariaDB 客户端程序，以 MySQL 用户名 root 登录。
sudo mysql -uroot -p
tip
注意：执行后需要输入用户名的密码和root用户密码！
在 MySQL 提示符内执行：
CREATE DATABASE wvp DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci;
CREATE USER 'wvp'@'localhost' IDENTIFIED BY '你的强密码';
GRANT ALL PRIVILEGES ON wvp.* TO 'wvp'@'localhost';
FLUSH PRIVILEGES;
EXIT;
例如我这里执行下面的命令：
CREATE DATABASE IF NOT EXISTS wvp
DEFAULT CHARACTER SET utf8mb4
COLLATE utf8mb4_unicode_ci;
-- 为 localhost（走 socket）
CREATE USER IF NOT EXISTS 'mvp'@'localhost'
IDENTIFIED WITH mysql_native_password BY '123456';
GRANT ALL PRIVILEGES ON wvp.* TO 'mvp'@'localhost';
-- 为 127.0.0.1（走 TCP）
CREATE USER IF NOT EXISTS 'mvp'@'127.0.0.1'
IDENTIFIED WITH mysql_native_password BY '123456';
GRANT ALL PRIVILEGES ON wvp.* TO 'mvp'@'127.0.0.1';
FLUSH PRIVILEGES;
EXIT;
确认是否可以登录：
mysql -h 127.0.0.1 -u mvp -p -e "SELECT 1;"
tip
注意：这里会需要让你输入创建用户的密码，例如我之前创建的用户为wvp,密码为：123456。则我这里输入123456
运行效果：
baiwen@dshanpi-a1:~/wvp-GB28181-pro$ mysql -h 127.0.0.1 -u mvp -p -e "SELECT 1;"
Enter password:
+---+
| 1 |
+---+
| 1 |
+---+
2.导入初始化脚本
cd ~/wvp-GB28181-pro
mysql -h 127.0.0.1 -u mvp -p wvp < "./数据库/2.7.4/初始化-mysql-2.7.4.sql"
tip
注意：这里会需要让你输入创建用户的密码，例如我之前创建的用户为wvp,密码为：123456。则我这里输入123456
验证是否可用
mysql -u wvp -p -e "USE wvp; SHOW TABLES;"
运行效果
baiwen@dshanpi-a1:~/wvp-GB28181-pro$ mysql -u wvp -p -e "USE wvp; SHOW TABLES;"
Enter password:
+----------------------------+
| Tables_in_wvp |
+----------------------------+
| wvp_cloud_record |
| wvp_common_group |
| wvp_common_region |
| wvp_device |
| wvp_device_alarm |
| wvp_device_channel |
| wvp_device_mobile_position |
| wvp_jt_channel |
| wvp_jt_terminal |
| wvp_media_server |
| wvp_platform |
| wvp_platform_channel |
| wvp_platform_group |
| wvp_platform_region |
| wvp_record_plan |
| wvp_record_plan_item |
| wvp_stream_proxy |
| wvp_stream_push |
| wvp_user |
| wvp_user_api_key |
| wvp_user_role |
+----------------------------+
3.重启系统
在终端自行系统重启命令：
reboot
4.2 修改配置文件
1.修改sql配置信息
找到wvp-GB28181-pro/target目录下的application-dev.yml配置文件。将此配置文件拷贝一份命名为application-274-dev.yml。
cp application-dev.yml application-274-dev.yml
修改配置文件中的：
datasource:
type: com.zaxxer.hikari.HikariDataSource
driver-class-name: com.mysql.cj.jdbc.Driver
url: jdbc:mysql://127.0.0.1:3306/wvp273数据库统合?useUnicode=true&characterEncoding=UTF8&rewriteBatchedStatements=true&serverTimezone=PRC&useSSL=false&allowMultiQueries=true&allowPublicKeyRetrieval=true
username: root
password: 12345678
修改为：
datasource:
type: com.zaxxer.hikari.HikariDataSource
driver-class-name: com.mysql.cj.jdbc.Driver
url: jdbc:mysql://127.0.0.1:3306/wvp?useUnicode=true&characterEncoding=UTF8&rewriteBatchedStatements=true&serverTimezone=PRC&useSSL=false&allowMultiQueries=true
username: mvp
password: 123456
修改sql数据库url、数据库新增的用户及密码。
2.修改zlm服务器配置
修改配置文件中的：
media:
id: zlmediakit-local
# [必须修改] zlm服务器的内网IP
ip: 192.168.1.10
# [必须修改] zlm服务器的http.port
http-port: 9092
# [必选选] zlm服务器的hook.admin_params=secret
secret: TWSYFgYJOQWB4ftgeYut8DW4wbs7pQnj
# 启用多端口模式, 多端口模式使用端口区分每路流，兼容性更好。 单端口使用流的ssrc区分， 点播超时建议使用多端口测试
rtp:
# [可选] 是否启用多端口模式, 开启后会在portRange范围内选择端口用于媒体流传输
enable: true
# [可选] 在此范围内选择端口用于媒体流传输, 必须提前在zlm上配置该属性，不然自动配置此属性可能不成功
port-range: 40000,45000 # 端口范围
# [可选] 国标级联在此范围内选择端口发送媒体流,
send-port-range: 50000,55000 # 端口范围
修改为：
media:
id: zlmediakit-local
# [必须修改] zlm服务器的内网IP
ip: 192.168.1.6
# [必须修改] zlm服务器的http.port
http-port: 80
# [必选选] zlm服务器的hook.admin_params=secret
secret: TWSYFgYJOQWB4ftgeYut8DW4wbs7pQnj
# 启用多端口模式, 多端口模式使用端口区分每路流，兼容性更好。 单端口使用流的ssrc区分， 点播超时建议使用多端口测试
rtp:
# [可选] 是否启用多端口模式, 开启后会在portRange范围内选择端口用于媒体流传输
enable: true
# [可选] 在此范围内选择端口用于媒体流传输, 必须提前在zlm上配置该属性，不然自动配置此属性可能不成功
port-range: 40000,45000 # 端口范围
# [可选] 国标级联在此范围内选择端口发送媒体流,
send-port-range: 50000,55000 # 端口范围
3.运行程序
java -jar wvp-pro-*.jar
tip
注意：正常访问视频控制台需要运行两个程序，需要同时打开两个终端，一个终端运行ZLMediaKit程序，另一个终端运行wvp程序。程序部署参考链接：部署
4.访问视频监控平台

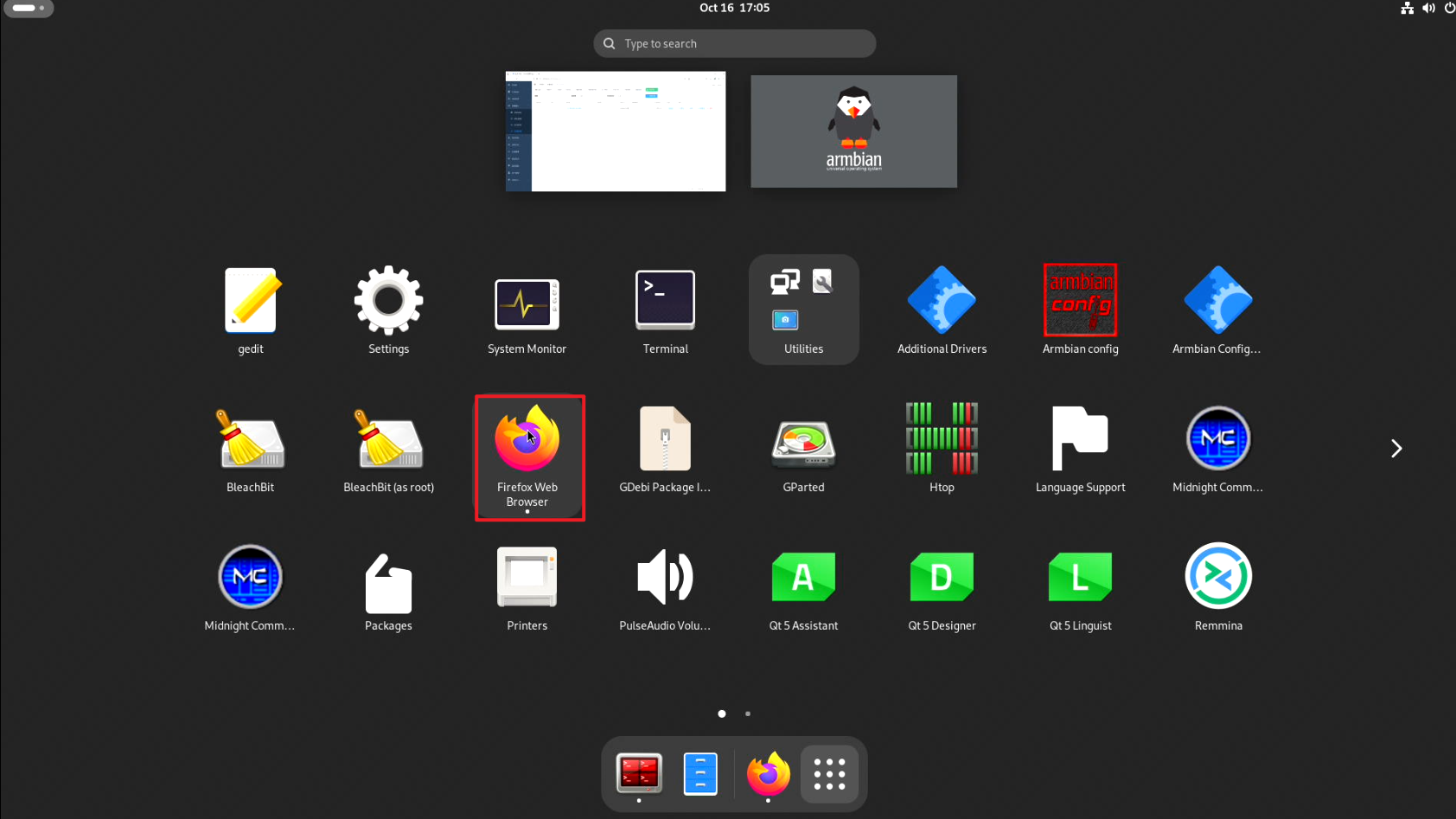

打开火狐浏览器

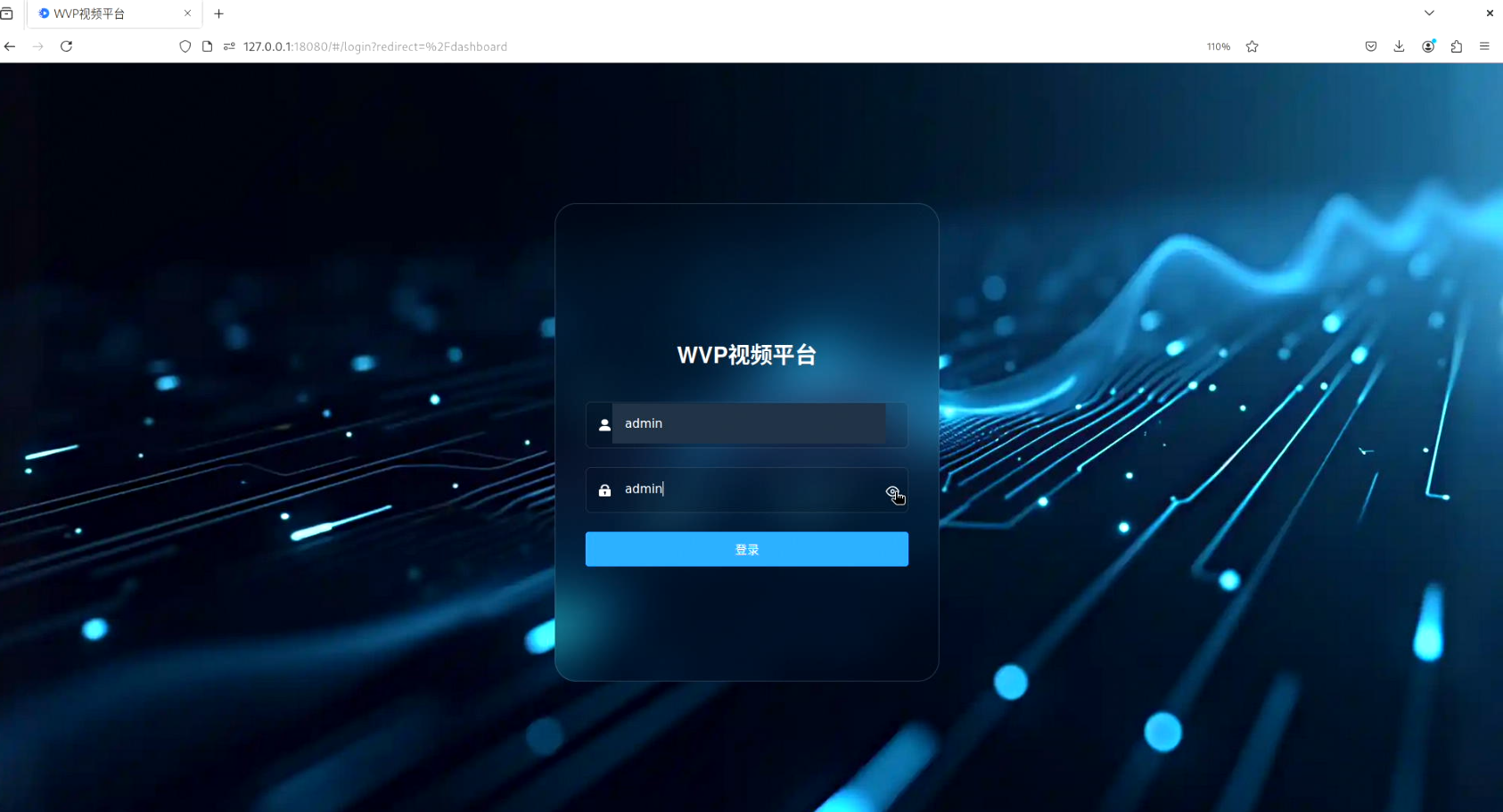

访问网址：http://127.0.0.1:18080，或者局域网内访问开发板的IP地址+端口18080,假设开发板的ip为192.168.1.6，则局域网内的设备访问：http://192.168.1.6:18080。即可登录MVP视频平台。
用户名和密码都为admin

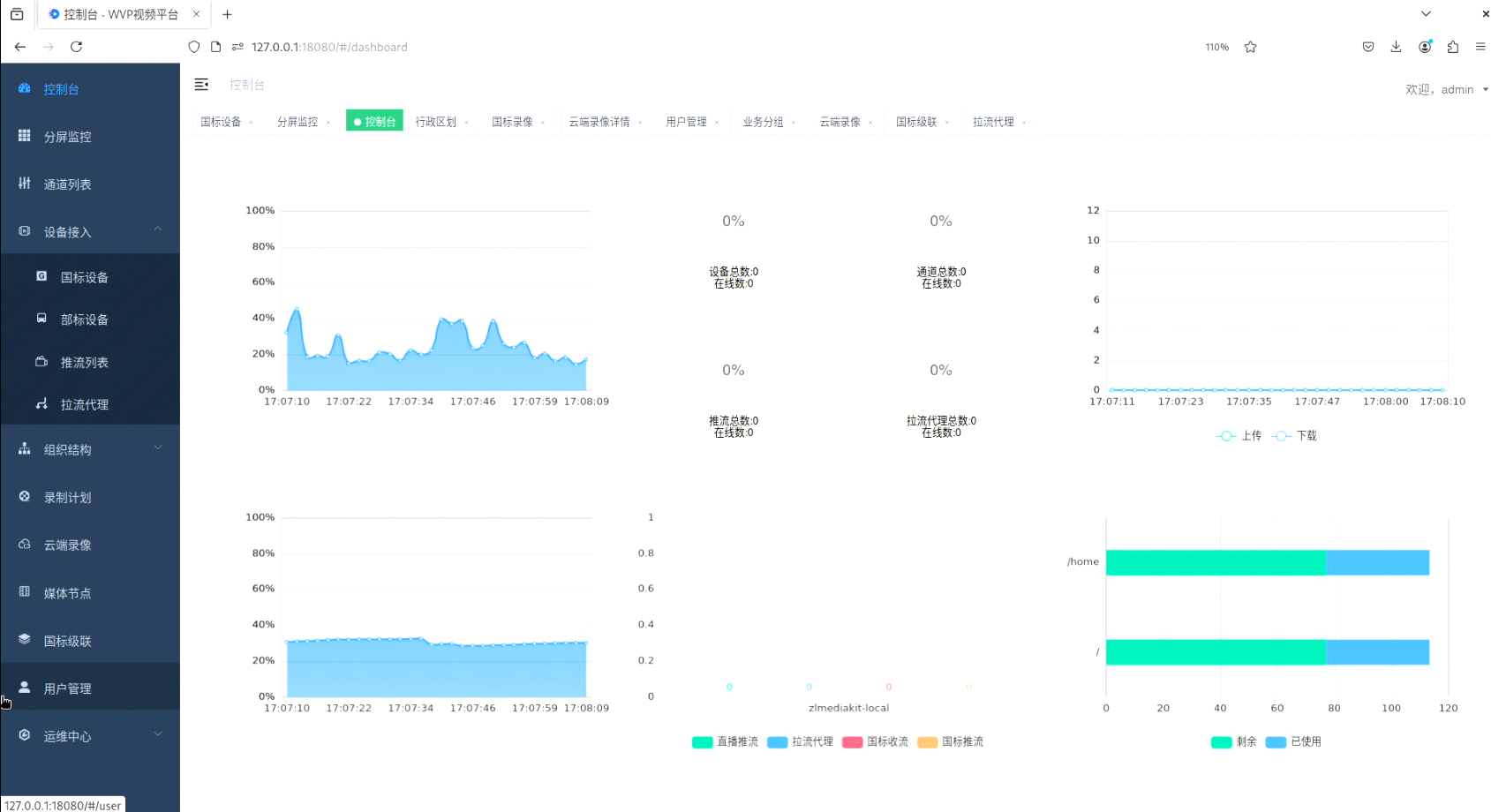

登录成功后可进入WVP控制台。
下面访问国标设备摄像头，我这里以海康威视摄像头为例。如果您使用的其他国标设备可参考官方文档：接入设备

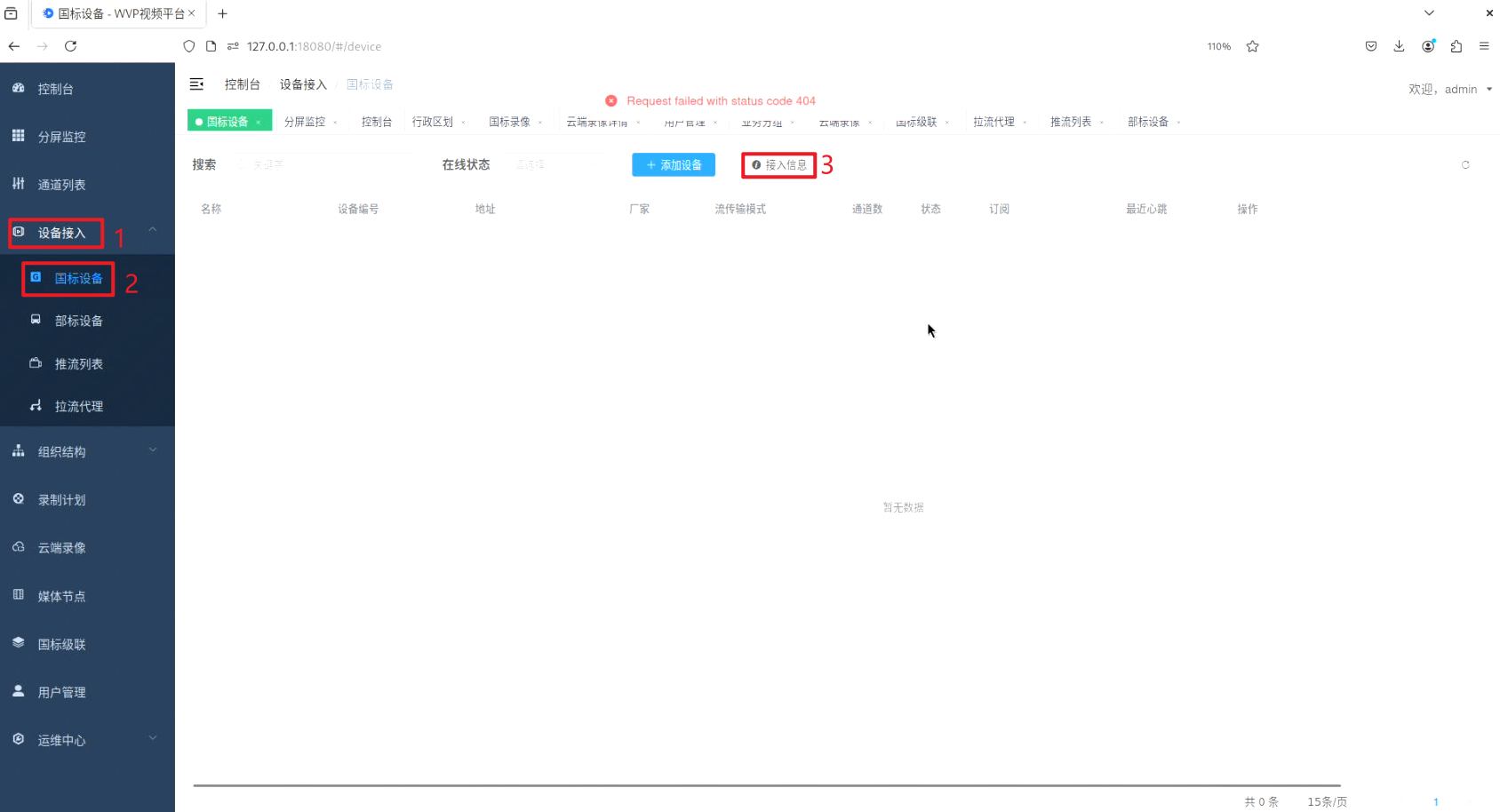

①.点击设备接入，再选择国标设备后，最后点击接入信息即可。

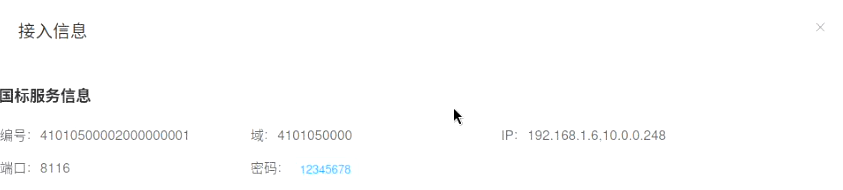

即可看到如下信息：

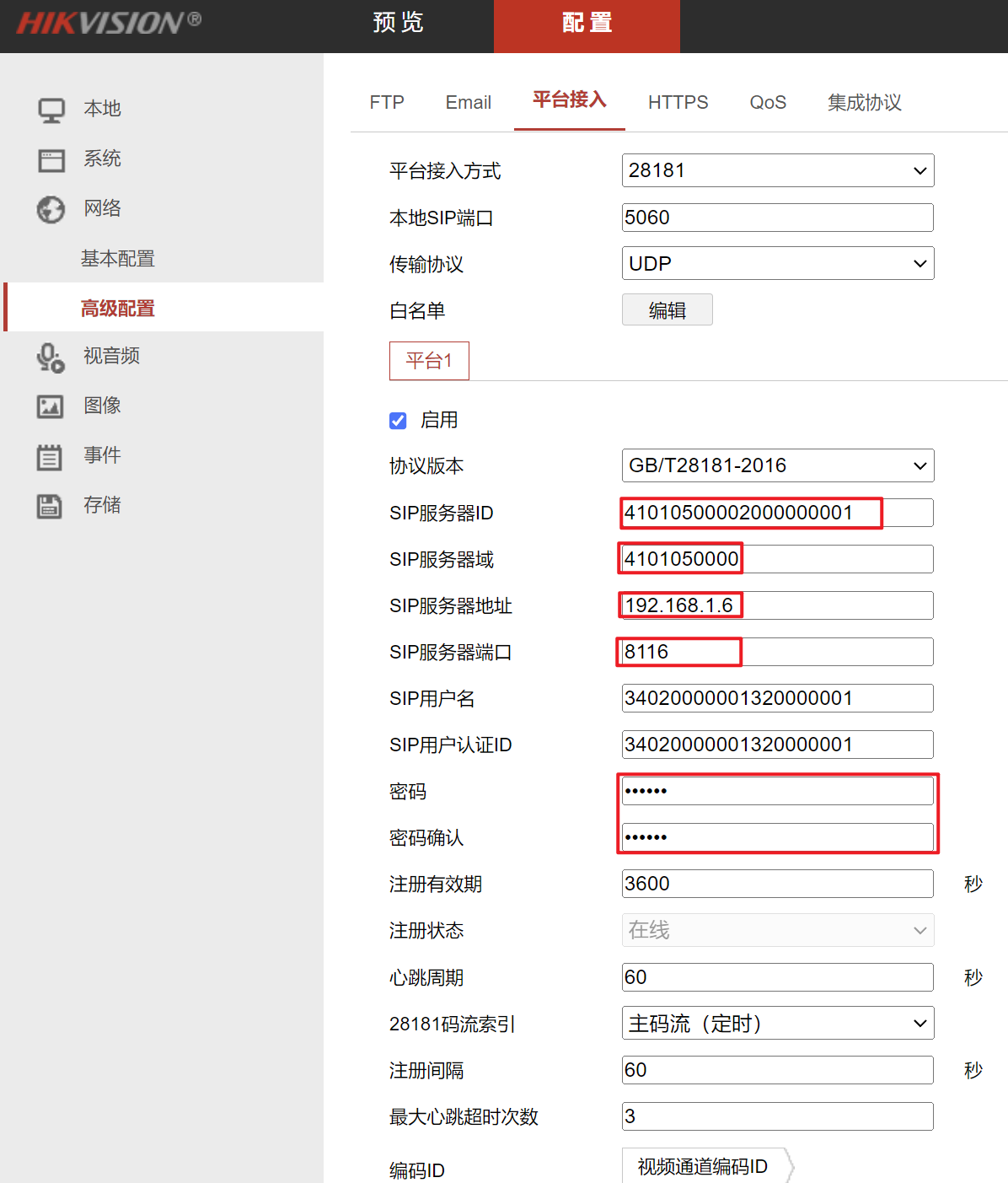

将接入信息的填入海康威视摄像头的配置界面，如下所示：

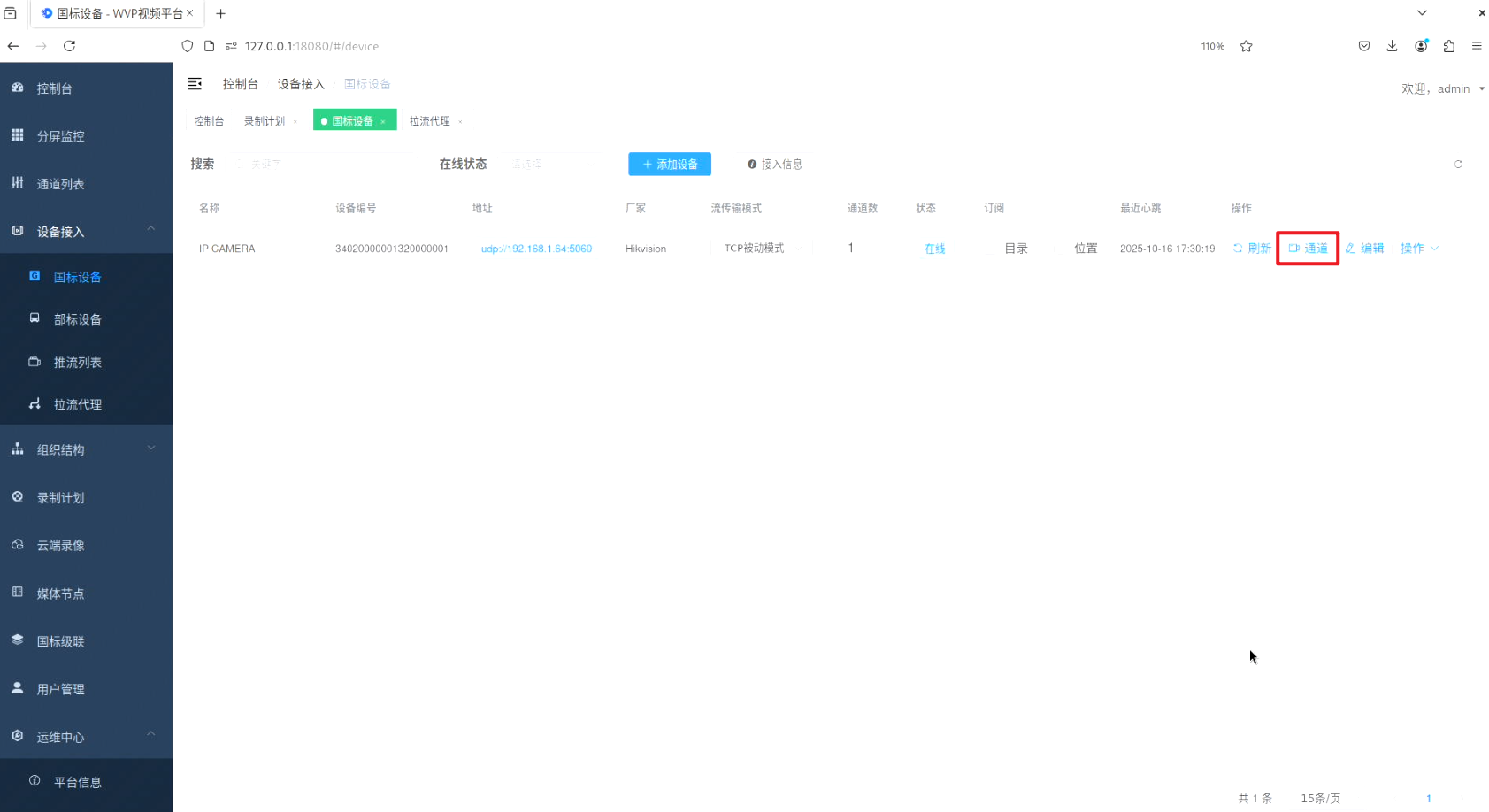

填写保存后，回到WVP视频平台可以看到对应的设备。

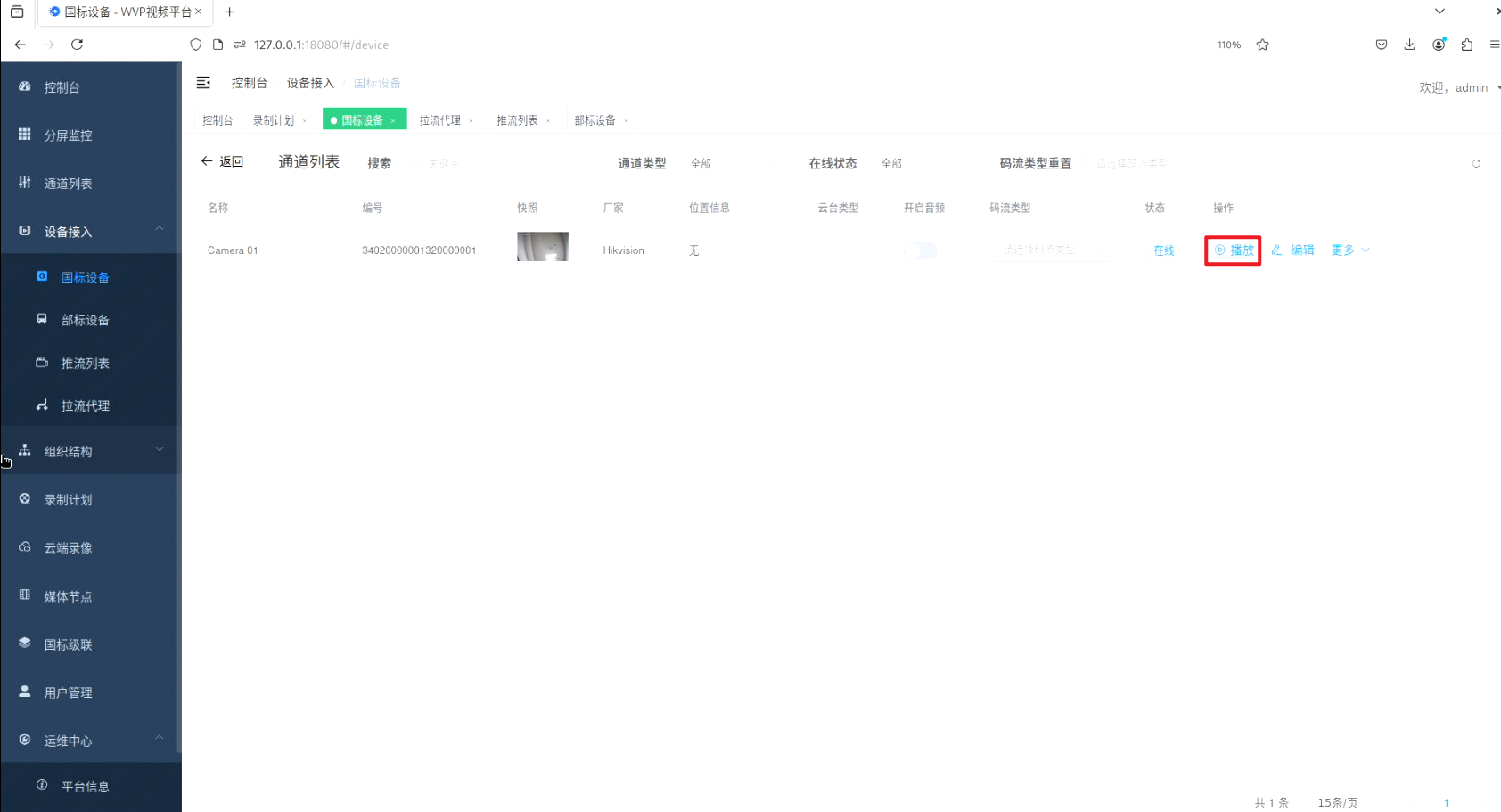

选择通道后，可以看到视频流通道，可点击播放

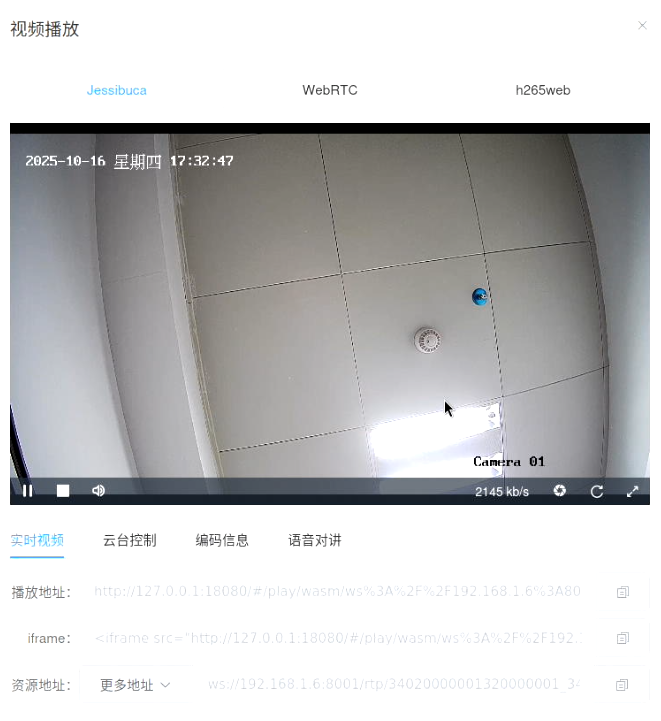

可以看到预览画面。
更多用法请参考：通道管理
5.参考工程
- 工程获取网盘链接: https://pan.baidu.com/s/1PcwZPSRA_qmlBzmAgANuWA?pwd=2r97 提取码: 2r97
此工程为在DshanPI A1开发板已验证通过，设备IP为：192.168.1.6。
如果您想使用此参考工程，请修改wvp-GB28181-pro\target目录下的application-274-dev.yml配置，例如修改ID、IP、端口等信息。
如果您想使用此参考工程，还请修改ZLMediaKit/release/linux/Debug/目录下的config.ini配置，例如修改ID、IP、端口等信息。
项目目录工程如下所示：
baiwen@dshanpi-a1:~$ tree -L 2
├── wvp-GB28181-pro
│ ├── bin
│ ├── bootstrap.sh
│ ├── buildPackage.sh
│ ├── doc
│ ├── docker
│ ├── install.sh
│ ├── libs
│ ├── LICENSE
│ ├── pom.xml
│ ├── README.md
│ ├── run.sh
│ ├── src
│ ├── target
│ ├── web
│ ├── zlm.md
│ ├── 打包
│ └── 数据库
├── ZLMediaKit
│ ├── 3rdpart
│ ├── Android
│ ├── api
│ ├── AUTHORS
│ ├── build
│ ├── build_docker_images.sh
│ ├── cmake
│ ├── CMakeLists.txt
│ ├── conf
│ ├── default.pem
│ ├── docker
│ ├── dockerfile
│ ├── ext-codec
│ ├── golang
│ ├── k8s_readme.md
│ ├── LICENSE
│ ├── package
│ ├── player
│ ├── postman
│ ├── README_en.md
│ ├── README.md
│ ├── release
│ ├── resource.rc
│ ├── server
│ ├── sources.list
│ ├── src
│ ├── srt
│ ├── tests
│ ├── tools
│ ├── webrtc
│ ├── www
│ └── ZLMVersion.h.ini
运行说明，需打开两个终端。
终端1
#进入root权限
su
#进入ZLMediaKit可执行文件目录
cd ZLMediaKit/release/linux/Debug/
#执行程序
./MediaServer -d -m 3
终端2:
#进入wvp程序目录
cd wvp-GB28181-pro/target/
#启动服务
java -jar wvp-pro-*.jar
6.常见问题
如果在编译或者开发中遇到问题，可前往官方仓库查询是否有相同的问题：GitHub · Where software is built
